运费模板
大约 3 分钟
运费模板
表设计
前端的输入表单可以看见是比较动态且复杂的，这种配置数据适合用json类型存储。configs字段用来存储运费配置。
valid字段标识全局唯一生效的运费模板。
create table carriage_template
(
id varchar(36) not null
primary key,
created_time datetime(6) not null,
edited_time datetime(6) not null,
creator_id varchar(36) not null,
editor_id varchar(36) not null,
name varchar(255) not null comment '模板名称',
description varchar(1000) not null comment '运费模板描述',
configs json not null comment '运费配置',
valid tinyint(1) not null comment '是否生效（全局只能存在一个生效）'
)
comment '运费模板';
模板创建
:::tabs
@tab java
运费模板实体类
configs字段在数据库是json类型，在Java中对应的类型是List<CarriageConfig>。使用@Serialized存入到数据库时会触发json序列化成字符串，读取时触发反序列化成List<CarriageConfig>。
@GenEntity
@Entity
public interface CarriageTemplate extends BaseEntity {
/**
* 模板名称
*/
@GenTextField(label = "模板名称", order = 1)
String name();
@GenTextAreaField(label = "模板描述", order = 2)
String description();
/**
* 是否生效（全局只能存在一个生效）
*/
@GenBooleanField
boolean valid();
/**
* 运费配置
*/
@Serialized
List<CarriageConfig> configs();
}
@Data
public class CarriageConfig {
/**
* 省份
*/
List<String> province;
/**
* 运费配置
*/
List<PriceRange> priceRanges;
@Data
public static class PriceRange {
/**
* 订单最高价格
*/
BigDecimal maxPrice;
/**
* 订单最低价格
*/
BigDecimal minPrice;
/**
* 运费
*/
BigDecimal carriage;
}
}
@tab html

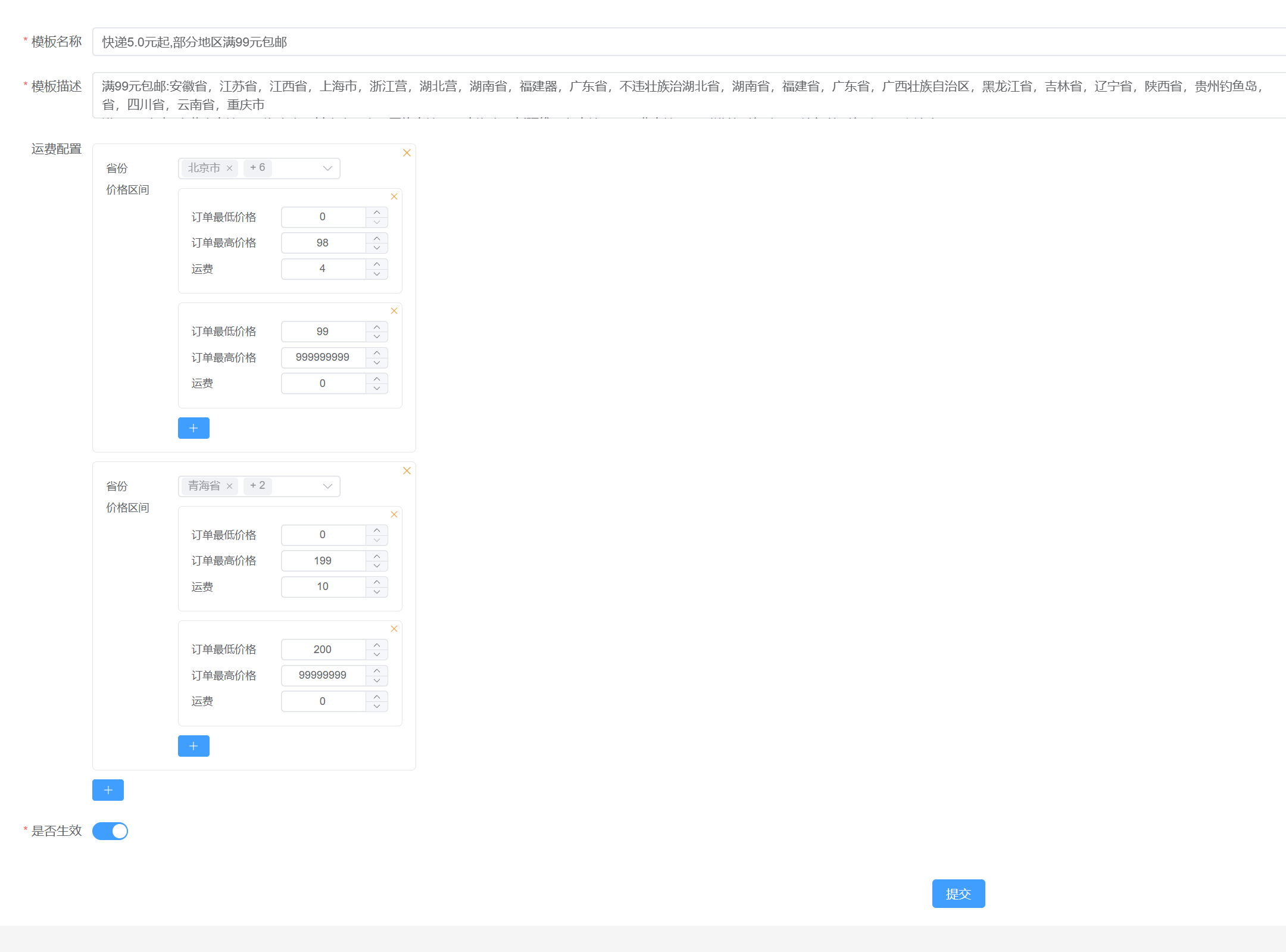

观察模板配置图，模板中可以配置多个CarriageConfig，每个CarriageConfig中可以配多个省份和多个价格区间PriceRange。由此构成了两次循环，外面一层循环carriages，里面循环carriage.priceRanges。
<template>
<div class="carriages-config">
<div class="carriage" v-for="(carriage, index2) in carriages" :key="index2">
<el-form size="small" label-width="80" label-position="left">
<el-form-item label="省份">
<el-select multiple v-model="carriage.province" collapse-tags>
<el-option
v-for="option in pcaTextArr"
:key="option.label"
:value="option.value"
:label="option.label"
></el-option>
</el-select>
</el-form-item>
<el-form-item label="价格区间">
<div class="price-config">
<div
class="price-range-wrapper"
v-for="(priceRange, index) in carriage.priceRanges"
:key="index"
>
<el-form class="price-range" label-position="left" label-width="100" size="small">
<el-form-item label="订单最低价格">
<el-input-number
v-model="priceRange.minPrice"
:min="0"
controls-position="right"
></el-input-number>
</el-form-item>
<el-form-item label="订单最高价格">
<el-input-number
v-model="priceRange.maxPrice"
:min="0"
controls-position="right"
></el-input-number>
</el-form-item>
<el-form-item label="运费">
<el-input-number
v-model="priceRange.carriage"
controls-position="right"
></el-input-number>
</el-form-item>
</el-form>
<el-button
class="close"
type="warning"
link
@click="handleDeletePriceRange(carriage, index)"
>
<el-icon>
<close></close>
</el-icon>
</el-button>
</div>
</div>
</el-form-item>
<el-form-item label=" ">
<el-button
class="add"
type="primary"
size="small"
style="margin-top: 10px"
@click="handleAddPriceRange(carriage)"
>
<el-icon>
<plus></plus>
</el-icon>
</el-button>
</el-form-item>
</el-form>
<el-button class="carriage-close" type="warning" link @click="handleDeleteCarriage(index2)">
<el-icon>
<close></close>
</el-icon>
</el-button>
</div>
<el-button
class="add"
type="primary"
size="small"
style="margin-top: 10px"
@click="handleAddCarriage"
>
<el-icon>
<plus></plus>
</el-icon>
</el-button>
</div>
</template>
@tab ts
<script setup lang="ts">
import type { CarriageConfig } from '@/apis/__generated/model/static'
// -----中国的省市区配置信息
import { pcaTextArr } from 'element-china-area-data'
import { Close, Plus } from '@element-plus/icons-vue'
const carriages = defineModel<CarriageConfig[]>({ required: true })
// ----- 模板配置增删 -----
const handleAddPriceRange = (carriage: CarriageConfig) => {
carriage.priceRanges.push({ minPrice: 0, maxPrice: 0, carriage: 0 })
}
const handleDeletePriceRange = (carriage: CarriageConfig, index: number) => {
carriage.priceRanges.splice(index, 1)
}
// ----- 模板配置增删 -----
// ----- 价格区间增删 -----
const handleDeleteCarriage = (index: number) => {
carriages.value.splice(index, 1)
}
const handleAddCarriage = () => {
carriages.value.push({
province: [],
priceRanges: []
})
}
// ----- 价格区间增删 -----
</script>
:::
运费计算
传入地址id和商品总价计算运费。
- 根据省份匹配适合的模板
- 根据商品总价匹配适合的价格区间
@Service
@Slf4j
@AllArgsConstructor
@Transactional
public class CarriageTemplateService {
private final CarriageTemplateRepository carriageTemplateRepository;
private final AddressRepository addressRepository;
public BigDecimal calculate(String addressId, BigDecimal productAmount) {
Optional<Address> userAddressOpt = addressRepository.findUserAddressById(addressId);
if (userAddressOpt.isEmpty()) return BigDecimal.ZERO;
Address address = userAddressOpt.get();
return carriageTemplateRepository.findValid()
.configs()
.stream()
.filter(config -> String.join(";", config.getProvince()).contains((address.province())))
.findFirst()
.orElseThrow(() -> new BusinessException("当前省份不支持发货请联系客服"))
.getPriceRanges()
.stream()
.filter(priceRange -> productAmount.compareTo(priceRange.getMinPrice()) >= 0 &&
productAmount.compareTo(priceRange.getMaxPrice()) <= 0)
.findFirst()
.orElseThrow(() -> new BusinessException("运费模板不适应与该订单，请联系客服"))
.getCarriage();
}
}
